Jinko Tiger Neo 615W N-type |JKM615w - 66HL4M-BDV - Jinko Solar panel

1,970,000đ Ex Tax: 1,970,000đ

Jinko Tiger Neo 615W N-type | JKM615w-66HL4M-BDV from Jinko Solar features an advanced N-type module and Hot 3.0 technology and Dual-Sided Power Generation that not only delivers high efficiency but also ensures durability and longevity.

Module Efficiency: 22,77%
Dimensions: 2278×1134×30 mm
Weight: 32.4kg
Product Warranty: 12 years
Linear Power Warranty: 30 years
0.4% Annual Degradation Over 30 years
First-year degradation: 1%

Price: 1,970,000VND

- +

Description
Reviews (0)

Jinko Tiger Neo JKM615w - 66HL4M-BDV- Efficient Energy Solution

Jinko Tiger Neo 615W N-type | JKM615w - 66HL4M-BDV is one of Jinko Solar's most advanced products. Featuring N-type technology and dual-sided power generation, this solar panel delivers high efficiency and ensures durability and longevity.

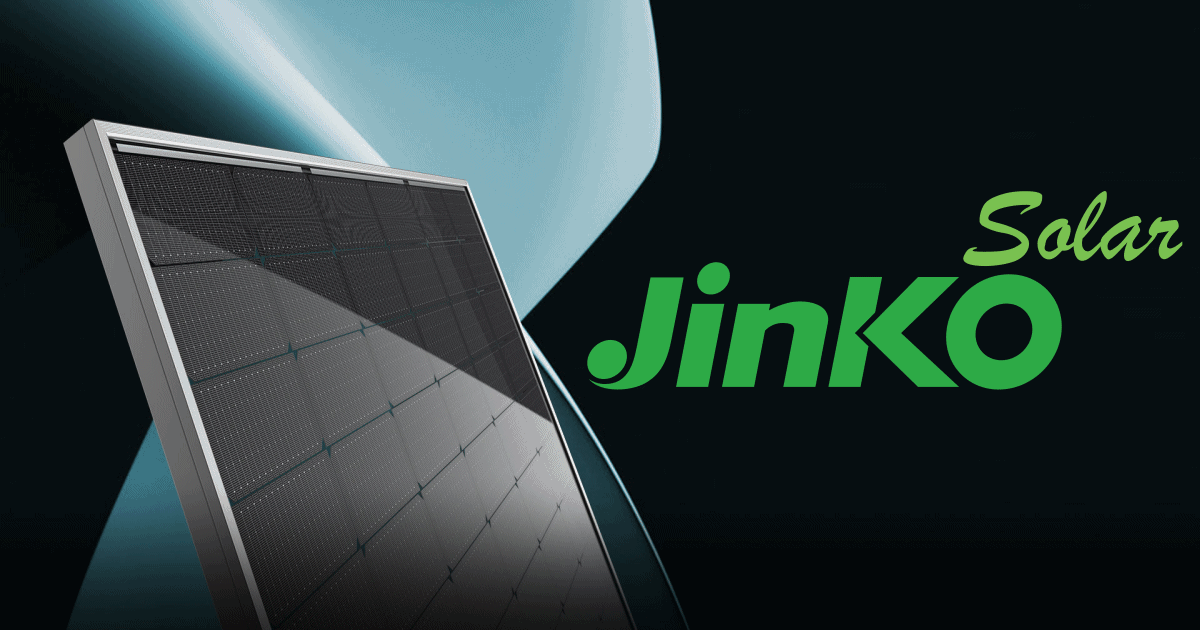

JINKO-TAM-PIN

Key features of Jinko Tiger Neo JKM615w-66HL4M-BDV

N-Type Technology: N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low-light performance.
PID Resistance: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
Higher Power Output: Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
Hot 3.0 Technology: N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability and efficiency.
Enhanced Mechanical Load: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).
N-type Technology: N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low-light performance.
Dual-Sided Power Generation: Dual-sided power generation gains increase with backside exposure to light, significantly reducing LCOE.

Technical Parameter of Jinko Solar Tiger Neo JKM615w-66HL4M-BDV

Mechanical Characteristics

Cell Type	N-type mono-crystalline
No. of cells	132
Dimensions	2338×1140×1251 mm
Weight	32.4 kg
Front Glass	2.0 mm, Anti-Reflection Coating
Back Glass	2.0 mm, Heat-Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class II
IEC Fire Type	Class C
Connector Type	JK03M/MC4/Others
Output Cables	4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length

Packaging Configuration

Pallet Dimensions	2338×1140×1251 mm
Packing detail	36 pcs/pallets, 720 pcs/ 40'HQ Container

Specifications

Maximum Power ‒ Pmax	615wp
Maximum Power Voltage ‒ Vmp	40.60 V
Maximum Power Current ‒ Imp	15.15 A
Open-circuit Voltage ‒ Voc	49.08 V
Short-circuit Current ‒ Isc	16.08 A
Module Efficiency STC	22.77
Power Tolerance	0 ~ + 3 %
Temperature Coefficients of Pmax	-0.29 %/°C
Temperature Coefficients of Voc	-0.25 %/°C
Temperature Coefficients of Isc	0.045 %/°C
